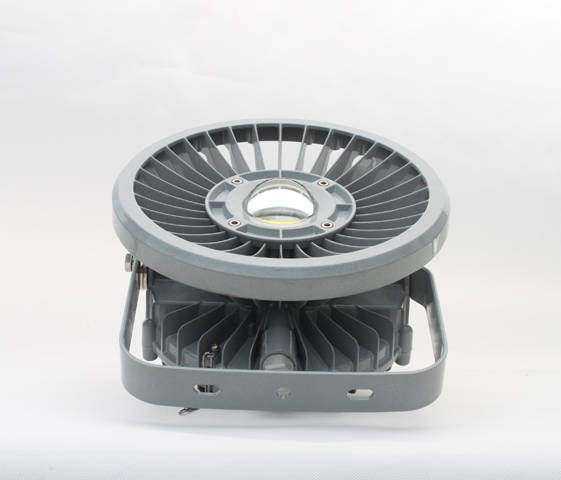

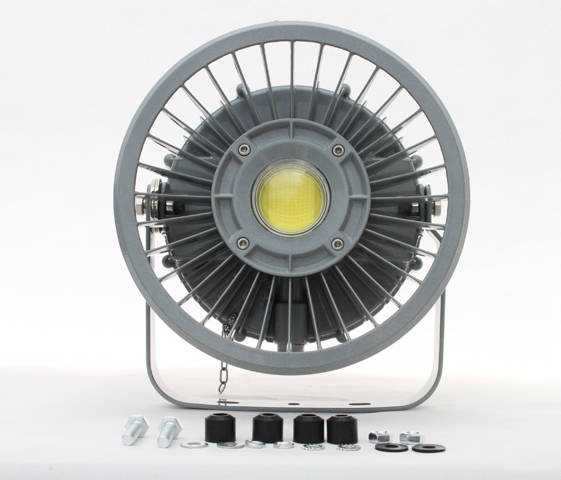

High Power LED Floodlight
ZY9710 Series
  • IP Code: IP66
  • Ambient temp.: -40℃ to +50℃
  • It is ideal to be used as floodlight at the large workshop, plant, stations and anywhere a highly durable and efficient light source is needed.
  • It adopts American BridgeLux LED as light source, which is lead in integrated light source technology and performance in the world.
  • Vane type structure housing accelerate the heat dissipation, so that to ensure the LED service life.
  • Equipped with world top ranking brand Taiwan Meanwell electrical appliance, make the lamp's performance more stable and efficient.
  • The locking device on the bracket will keep the lamp from shift or trembling during harsh vibration.
  • The housing is made of light aluminium alloy, with sealing, spraying treatment, and shock proof design, strong resistant to corrosion, water and high temperature, applicable to various harsh environments.
  • Parallel connection is available, no need to use junction box.
  • Beam angle: 90°(standard), 60°, 120°and streetlight beam angle is optional.
TECHNICAL SPECIFICATION
Input Voltage 90-305VAC / 127-431VDC
Output Voltage 36VDC
Frequency 50Hz / 60Hz
Anti corrosion grade IP66
Ingress Protection WF2
Insulation Grade I
Space Height Ratio 2
Screw Thread G3/4”
Cable Diameter Φ8mm~Φ14mm
Dimension Φ300x202mm
Net Weight 6.3Kg
