LED Low Bay Light
ZY5301 Series
  • IP Code: IP66
  • Ambient temp.: -40℃ to +50℃

Application

  • It is an ideal lighting solution for the factory, station, tunnel, control room, transformer room and some other indoor places with low bay roof.

  • The unit efficiently utilize the light, utilization rate can reach 97%. Besides, it has a good performance of illuminance uniformity, glare free, can avoid eyestrain to the worker.

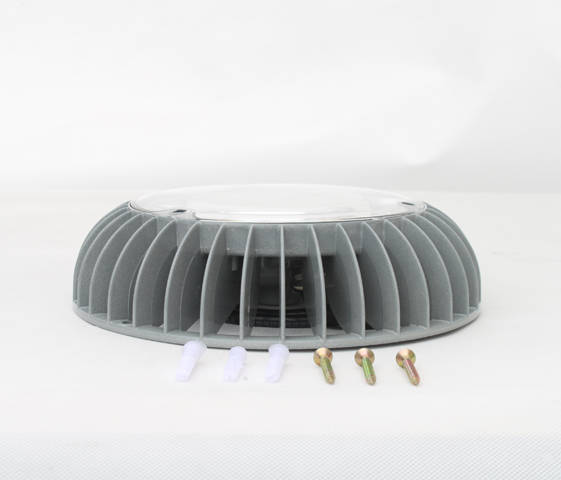

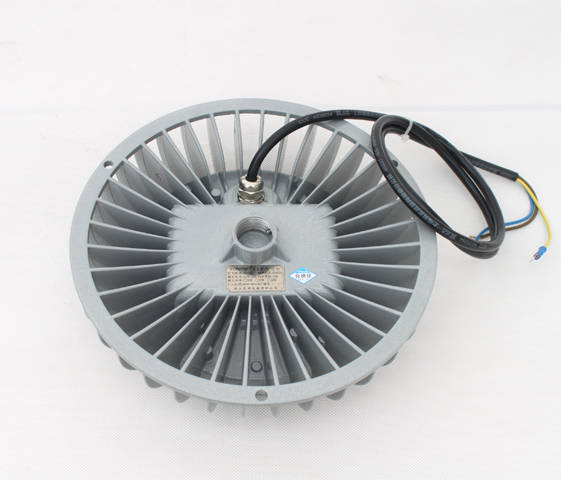

  • Vane type structure housing accelerate the heat dissipation, so that to ensure the LED service life.

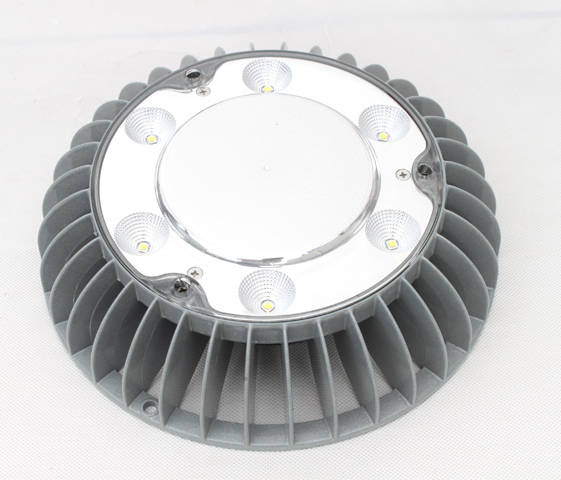

  • It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
  • Equipped with world top ranking brand electrical appliance, make the lamp's performance more stable and efficient.
  • The unit have excellent electromagnetic compatibility, will not cause interference to the other device or the electric power transmission network.
  • The anti corrosion, abrasion proof, power coated cover which is dust proof, water proof , make the lamp an excellent option for all kinds of high stress environment.
  • 10W 25W with input voltage 18-43VAC / 18-55VDC is available.
TECHNICAL SPECIFICATION
Input Voltage 90-264VAC / 127-370VDC
Output Voltage 24VDC
Frequency 50Hz / 60Hz
Ingress Protection IP66
Anti corrosion grade WF2
Insulation Grade I
Space Height Ratio 2
Leading-in cable diameter Φ6mm -Φ8mm
Dimension Φ240x65mm
Net Weight 1.4Kg
ORDERING REFERENCE
Model Number Input Voltage Light Source Rated Wattage Light Output Metal Halide Electrodeless Energy Saving High Pressure Mercury
ZY5301-L10
90-264VAC or 127-370VDC
LED		 10 1,356 / 30W 60W 1x36W
ZY5301-L25 25 3,378 70W 60W 2x36W 2x36W
ZY5301-L40 40 4,890 100W 100W 120W 2x36W
OPTIONAL
ZY5301-L10-D
18-43VAC or 18-55VDC
LED		 10 1,356 / 30W 36W 1x36W
ZY5301-L25-D 25 3,378 70W 60W 2x36W 2x36W
