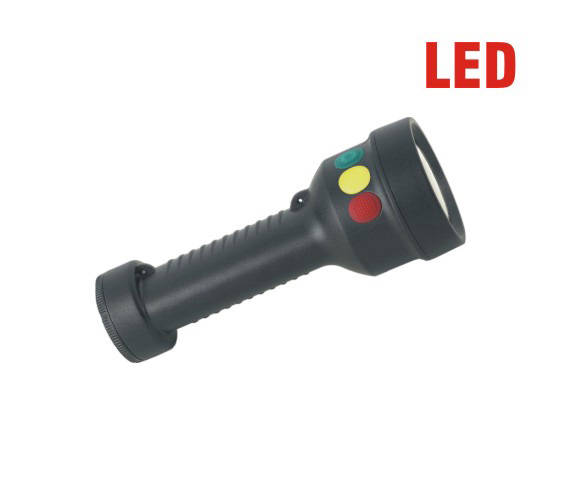

Railway LED Signal Flashlight

ZW7600, ZW7600A

It is used at railway, aviation and other transportation area and some special fields, serving as signal indication, safety warning and normal illumination.

ZW7600 uses CREE LED light source, with 100,000hours service life. The reflector adopts hi-tech surface finishing technology, make sure a high light reflectivity. The effective beam range can exceed 100 meters. Any two of the red, yellow, green light can be chosen as signal light. Its coloured signal light's beam distance can reach 5,000meters.
ZW7600A uses ultra bright Φ 5 LED as light source, with 100,000hours service life. Equipped three color light: red, green, yellow. Its colored signal light's beam distance can reach 5,000meters.
It is sealed to IP65 preventing the ingress of water; The housing is made of PC material, drop resistant to 1 meter. It can withstand high and low temperature suitable to be used in all kinds of harsh environment.
The rear light on its tail is ideal as a personal indicator to identify the position of the users. It eliminates the danger and ensure the user's safety in the dark.
Use of the latest large bulk capacity lithium-iron battery with long service life improves reliability and eliminates ' memory ' affect.

TECHNICAL SPECIFICATION
Specification	Unit	ZW7600	ZW7600A
Rated voltage	VDC	3.7	3.7
Charging Voltage	VAC	100-240	100-240
Rated capacity	Ah	2.8	2.8
Current - White Worklight	mA	380	/
Current - Signal light	mA	120	200
Current - Real light on the tail	mA	20	20
Light Output	lm	170	85
Runtime - White worklight	h	≥10	/
Runtime - Signal light	h	≥30	≥14
Reharging time	h	8	8
Service Life	h	100,000	100,000
Battery Recharge Cycle	Times	≈1,000	≈1,000
Dimension - External diameter	mm	Φ66	Φ66
Dimension - Length	mm	172	172
Net weight	g	265	265
