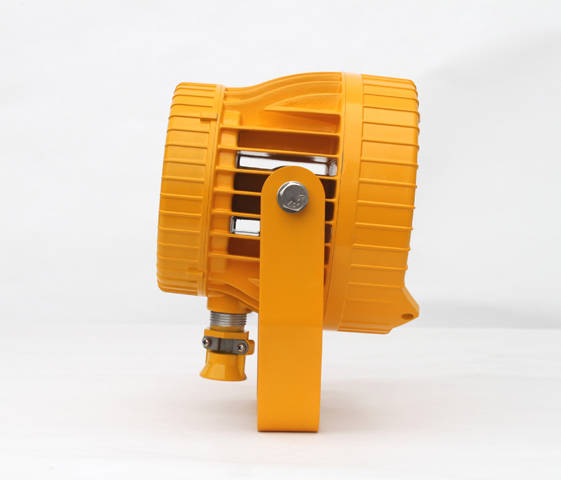

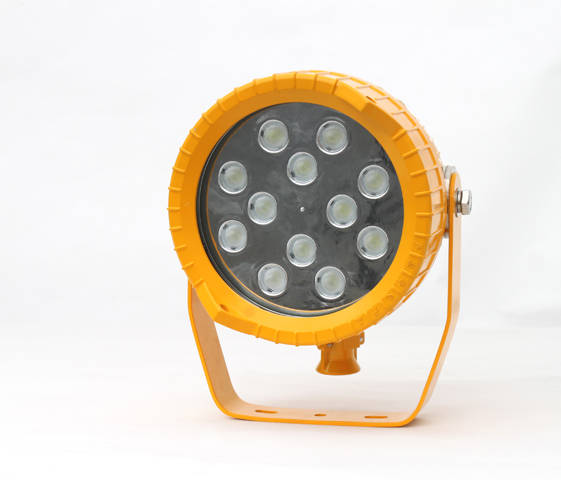

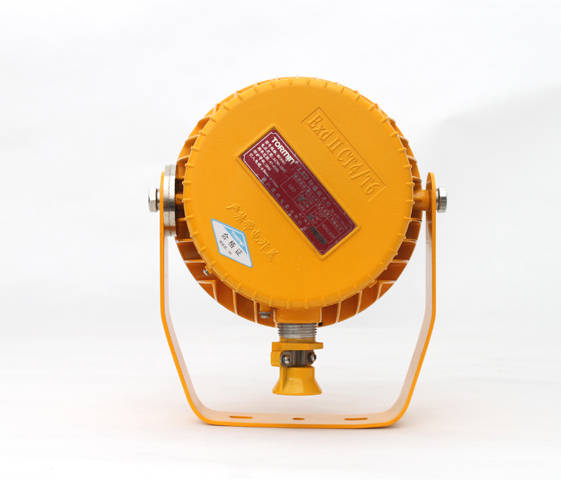

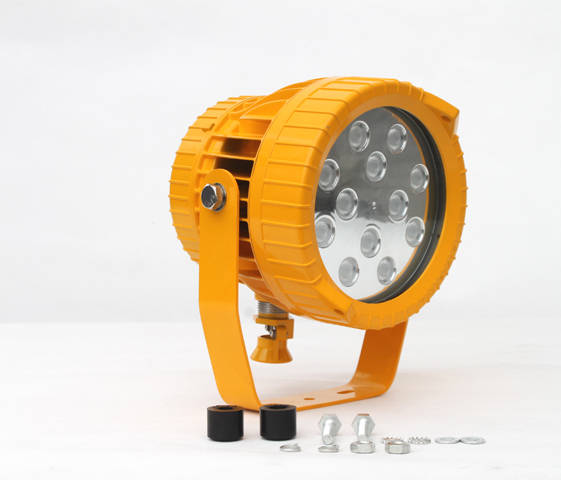

LED Explosion Proof Mining Spotlight
DGS40/127L(B) , DGS60/127L(B)
  • IP Code: IP66
  • Ex Code:Ex d I
  • Ambient temp.: -40℃ to +60℃
  • Standard: GB3836.1, GB3836.2, MT221

Application

  • It provides operators with a powerful and energy efficient spotlight for the flammable area such as the coal mine, indoor and outdoor work task, the monitoring spot and other devices.

  • Beam Angle: 25°or 80°is available.
  • The housing is especially designed to dissipate heat, which increase the efficiency and lifespan of the LED, so that to ensure the 100,000 hours LED lifespan.
  • The locking device on the bracket will keep the lamp from shift or trembling when harsh vibration.
  • It adopts American CREE LED as light source, can save 60% or more on energy than the metal halide lamp.
  • Equipped with world famous brand electrical appliance, ensuring the lamp have a stable performance.
  • The lamp is flame proof type of protection, designed for use in harsh environment or explosive application.
TECHNICAL SPECIFICATION
Input Voltage 90-264VAC / 127-370VDC
Output Voltage 38VDC/48VDC
Rated wattage 40W/60W
Frequency 50Hz / 60Hz
Ingress Protection IP66
Anti corrosion grade WF2
Insulation Grade I
Thread G3/4"
Leading-in cable diameter Φ8mm-Φ14mm
Dimension Φ180xΦ243mm
Net Weight 3.8Kg
ORDERING REFERENCE
Model Number Beam Angle Light Source Rated Wattage Light Output Metal Halide Electrodeless High Pressure Mercury Lamp
DGS40/127L(B)-25” 25” LED 40 5,508 100W 100W 125W
DGS40/127L(B)-80” 80”
DGS60/127L(B)-25” 25” LED 60 7,128 150W 135W 175W
DGS60/127L(B)-80” 80”
